Pylontech

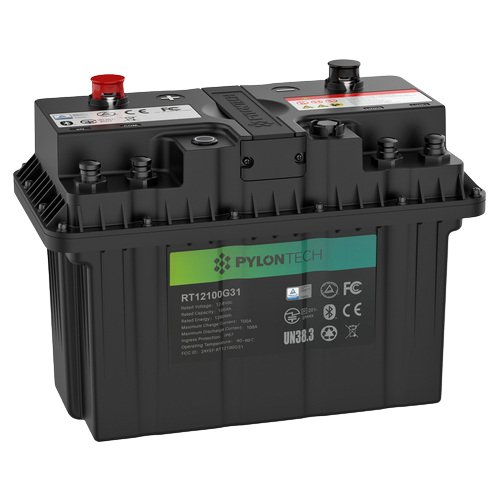

Pylontech IP67 | 12V 100Ah | Lithium Iron Battery LifePO4 | RT12100G31

RRP: $1,210.00 AUD
Our Price: $1,155.00 AUD
Sale Sold out
Tax included. FREE shipping Australia wide on orders over $300.

Description

Pylontech RT12100 12.8V 100Ah 1280Wh Lithium Iron Phosphate (LiFePO4) IP67 Battery with RS485 / CAN / Bluetooth and Dry Contact Communications. Connect up to 4 in series and 4 in parallel for 48V 400Ah.



RT12100G31 GENERAL INFORMATION
Nominal Voltage 12.8V
Rated Capacity 100Ah
Capacity 1280Wh
Dimensions 325mm x 173.5mm x 226mm
Gross Weight 13KG
IP Rating IP67
Terminal Connection M8 Bolt

ELECTRICAL
Voltage Range 10.8 - 14.4V DC
Charge Voltage 14-14.4V DC
Continuous Charge Current 50A
Continuous Discharge Current 100A
Peak Current 200A @ 30 Seconds

OTHER
Working Temperature -20℃ - 60℃
Storage Temperature -40℃ - 60℃
Humidity Range 5% - 95% (without condensing)
Altitude < 4000 Metres
Cycle life Up to 6000 cycles
Parallel Capable Up to 4 in Parallel
Series Capable Up to 4 in Series
Warranty 3 Years
COMMUNICATIONS
RS485 115200bps
CAN 500kbps
Bluetooth BLE5.0
Dry Contactor 2x Input & 2x Output

CERTIFICATION
SAE J930, SAE J1455, UL1973, IEC62619, FCC, CE, Bluetooth SIG, UN38.3
