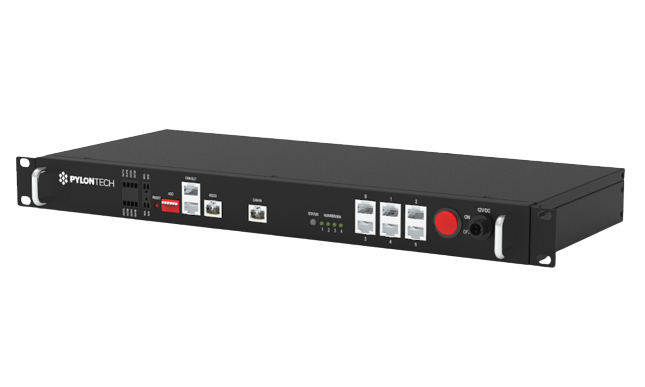

Pylontech | LV-HUB Communication Hub
The Pylontech LV-Hub is a communication hub for US2000 / US3000 / US5000 Lithium-Ion Phosphate Battery storage system. LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection. A hub is not required with up to 6 groups and 16 batteries in total for CANbus connection.
Each battery group can configure a maximum of 8x US2000B Plus or 8x US3000 with a maximum of 5 groups of batteries.
|Operating Voltage Range||12VDC|
|System Power Consumption||2W|
|Size||442 x 150 x 44mm|
|Ingress Protection Rating||IP20|
|Operation Life||15 Years|
|Working Temperature||-20 ~ 60℃|
|Storage Temperature||-40 ~ 80℃|
|CAN (Max 5 groups)||Baud rate: 500; Terminal Resistance: 0/120Ω|
|RS485 (Max 5 groups)||Baud rate:9600/115200|
