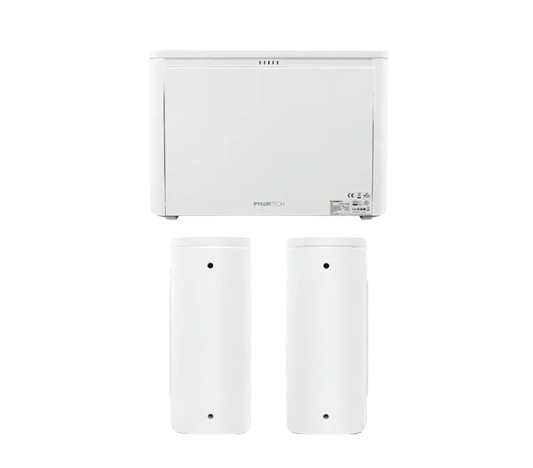

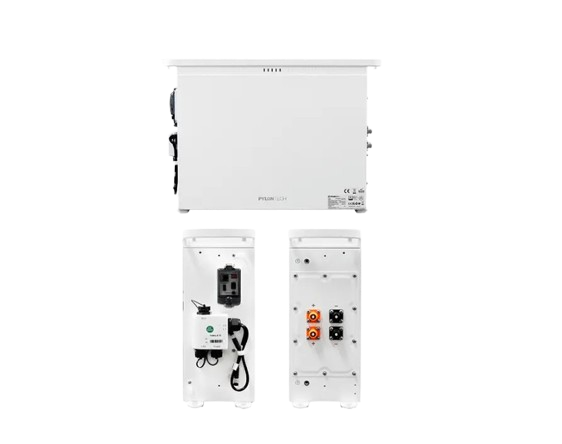

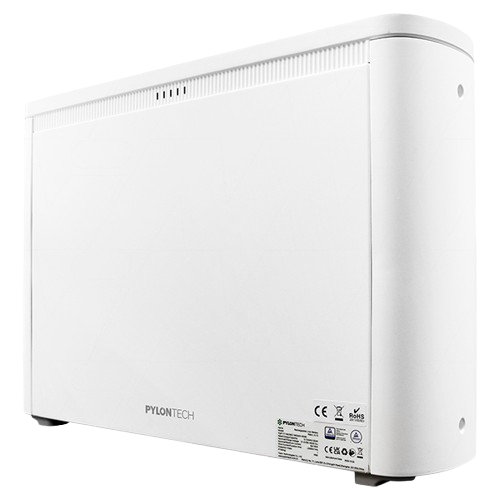

Pylontech Pelio 51.2V 100Ah 5.12kWh Slim-line ESS Module - PELIO-L

The Pylontech Pelio-L is a modern, slim-profile energy storage solution designed for residential and light commercial applications. Featuring a clean white steel enclosure and flexible installation options—floor or wall-mounted, indoors or outdoors—the Pelio delivers both style and practicality.

With scalable capacity from 5.12kWh to 102.4kWh, a built-in advanced BMS, and full remote monitoring capability, the Pelio system offers dependable performance and long-term reliability for any energy-conscious home or business.

Features & Benefits:

• Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
• Lightweight and Slimline design
• High Capacity 51.2V 100Ah modules 1C discharge capability
• Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
• Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
• IP65 Rated and suitable for Indoor or Outdoor installation

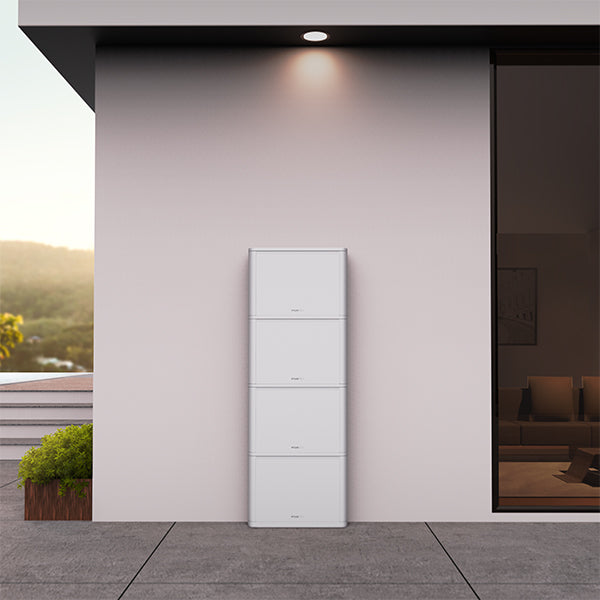

• Floor or Wall mountable to adapt to any location (Wall – 3 modules max. Ground – 4 modules max)
• 24/7 Wifi Monitoring with simple to use mobile App
• Monitor your energy production and consumption in real time
• 15 year design life
• Compatible with many available Hybrid inverters
• Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
• Clean Energy Council Approved (CEC)

  Warranty: The Pelio-L comes with a standard warranty of 10 years.



  Specifications:

  Chemistry	LiFePO4
  System Voltage (V)	51.2V
  System Capacity (kWh)	5.12kWh
  System Capacity (Ah)	100Ah
  Charge Voltage (V)	56.0V – 56.8V
  System Recommended Charge/Discharge (A)	80A (1 cable set)
  System Max. Charge/Discharge (A) – 15 Minutes	100 – 120A (1 cable set)
  System Peak Charge/Discharge (A) – 15 seconds	120 – 200A (1 cable set)
  Discharge Voltage (V)	44.8V – 56.8V
  Depth of Discharge (DoD)	95%
  Communications	RS485, CAN
  Operation & Connection	WIFI (2.4G), USB2.0
  Protection Class	IP65
  Communications	RS485 / CAN
  Design Life (Years)	15 years
  Operating Temperature Charge	-0°C to +50°C
  Operating Temperature Discharger	-10°C to +50°C
  Altitude	<4000 metres
  Humidity	5% – 95% RH – No Condensation
