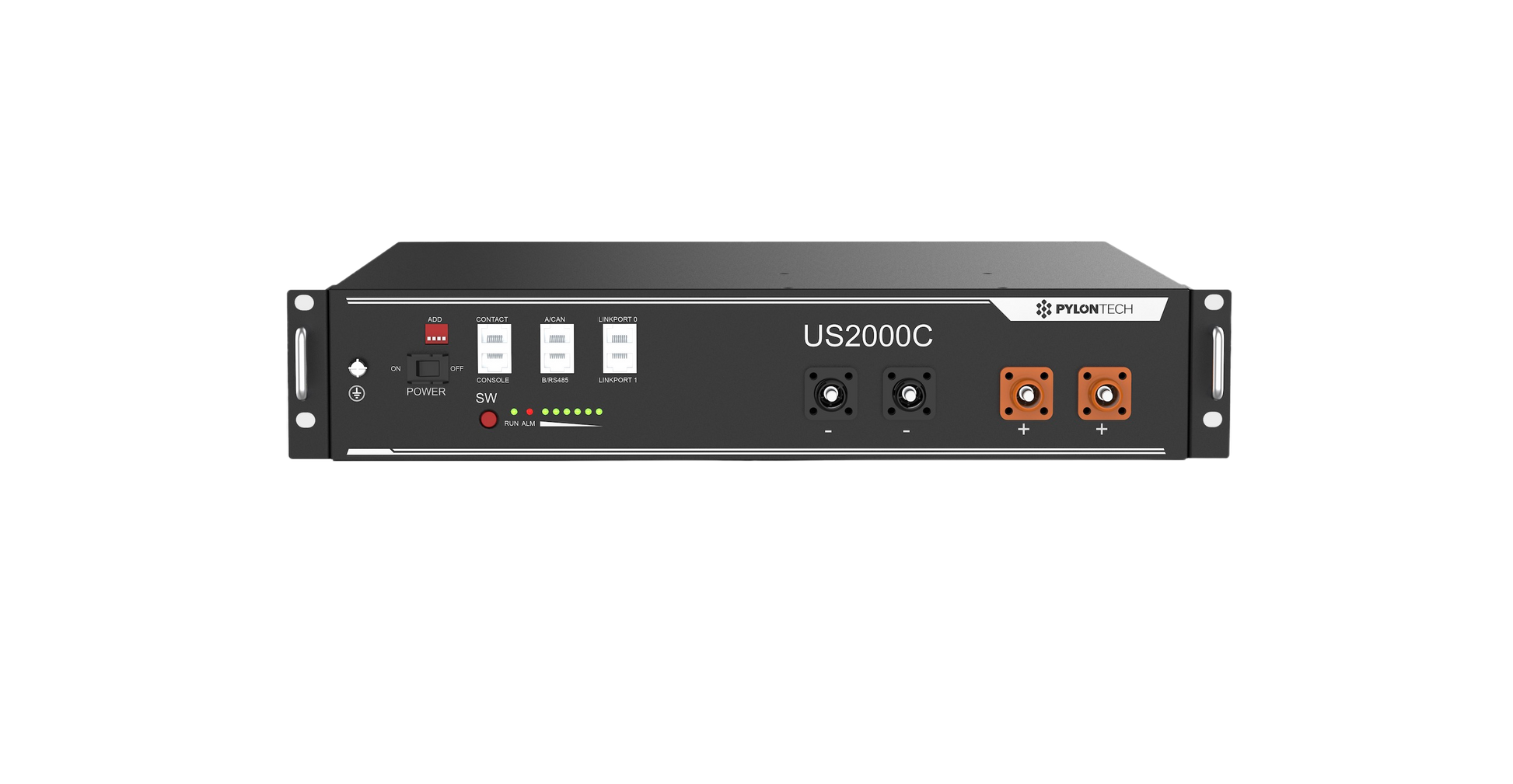

Pylontech | US2000C | 48-volt 2.4kWh | Lithium Battery

Pylontech’s US2000C lithium battery is the new version of the already known US2000.

The simplicity and modularity of the 2.4 kWh capacity US2000C make it suitable to realize storage systems of small and large capacities that can be expanded according to current and future energy needs.

Among the new features there is the built-in Soft-Start function able to reduce the peak current when inverter need to start from battery.

The US2000C battery has an integrated BMS that can manage and monitor cell information including voltage, current and temperature.

Features:

• The more stable and safer internal molecular structure of LFP batteries, allows an increase in combustion temperature equal to 600 ° C compared to 300 ° C of NMC and LCO;
• 95% depth of discharge (DOD), available for the inverter which completely follow Pylontech latest protocol to operate;
• Support wake up by 5~12V signal from RJ45 port;
• Support upgrade battery module from upper controller via CAN or RS485 communication;
• Dual active protection on BMS level;
• Ability to work under different temperature conditions;
• Monitoring and assistance included.
