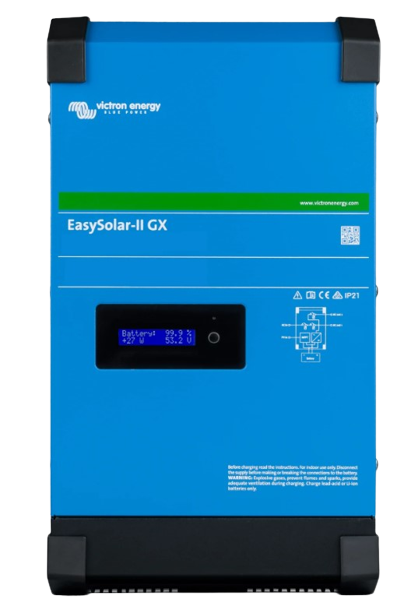

Victron EasySolar-II | MPPT Solar Charger & Inverter System | 48/5000/70-50 MPPT 250/100 GX

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements: • A MultiPlus-II inverter/charger • A SmartSolar MPPT -Tr solar charge controller • A GX device with a 2 x 16-character display. These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

The integrated GX device includes: • A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port. • A USB port • An Ethernet port • A VE.Direct port The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
