Victron Plug & Power Pre-Wired System

MultiPlus-II 12/3000 with Solar & DC-DC Charging

Upgrade your boat, caravan, 4WD, RV, or off-grid power system with a professionally built Victron Plug & Power solution.

Built around the Victron MultiPlus-II 12/3000/120-32 inverter/charger, this complete pre-wired system provides reliable 240V AC power, high-performance battery charging, solar charging, DC-DC alternator charging, and advanced battery monitoring. Every board is professionally assembled, programmed, labelled and fully tested before dispatch, significantly reducing installation time while delivering a clean, reliable and professional installation.

---

Standard Board Size

850mm (H) × 700mm (W)

Need a different size?

Our Plug & Power systems can be custom built to suit your available installation space and project requirements. We can modify the board size, component layout and optional accessories to create a solution tailored specifically to your vessel, vehicle or off-grid installation.

---

What's Included

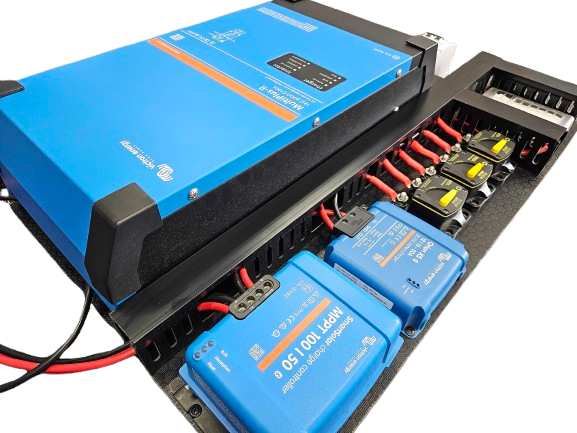

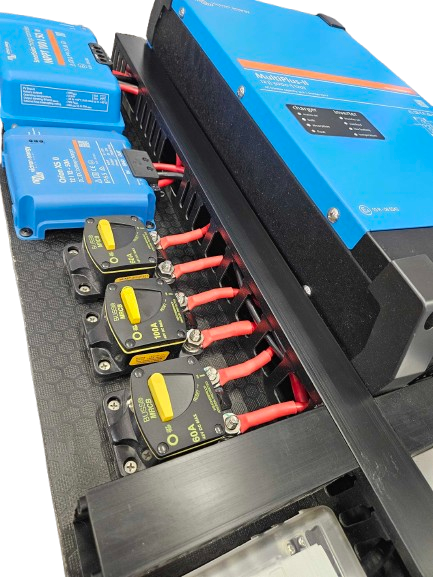

Victron MultiPlus-II 12/3000/120-32

• 3000VA inverter/charger

• Approximately 2400W continuous AC output

• 120A battery charger

Victron SmartSolar MPPT 100/50

• High-efficiency MPPT solar charger

• Bluetooth monitoring via VictronConnect

Victron Orion XS 12/12-50A

• Intelligent DC-DC charger for alternator charging of your house battery bank

Victron SmartShunt IP65 500A/50mV

• Accurate battery State of Charge (SOC) monitoring

• Bluetooth connectivity

Victron Lynx Distributor 1000A M10

Victron MEGA Fuses

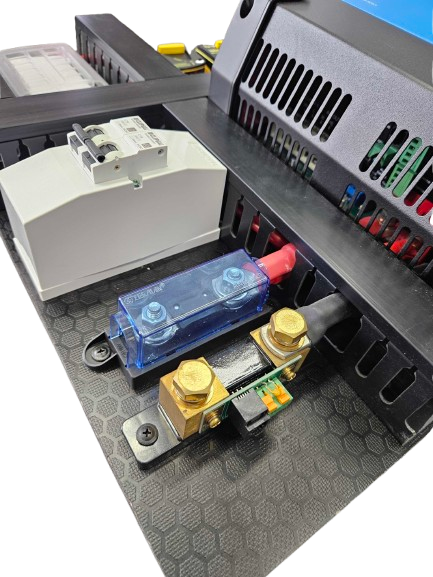

Class-T Battery Fuse & Fuse Holder

350A Battery Isolation Switch

12-Circuit Fuse Block

• Integrated negative busbar

• Protective cover

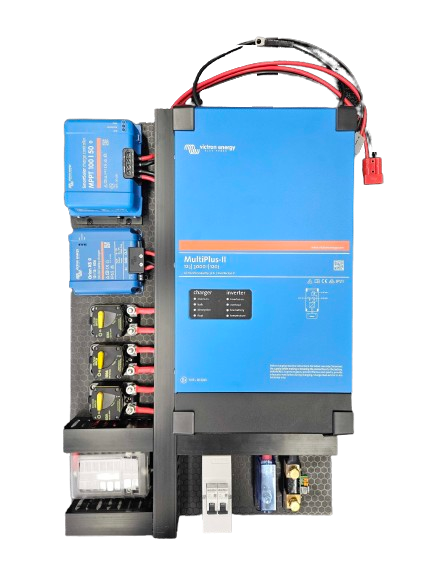

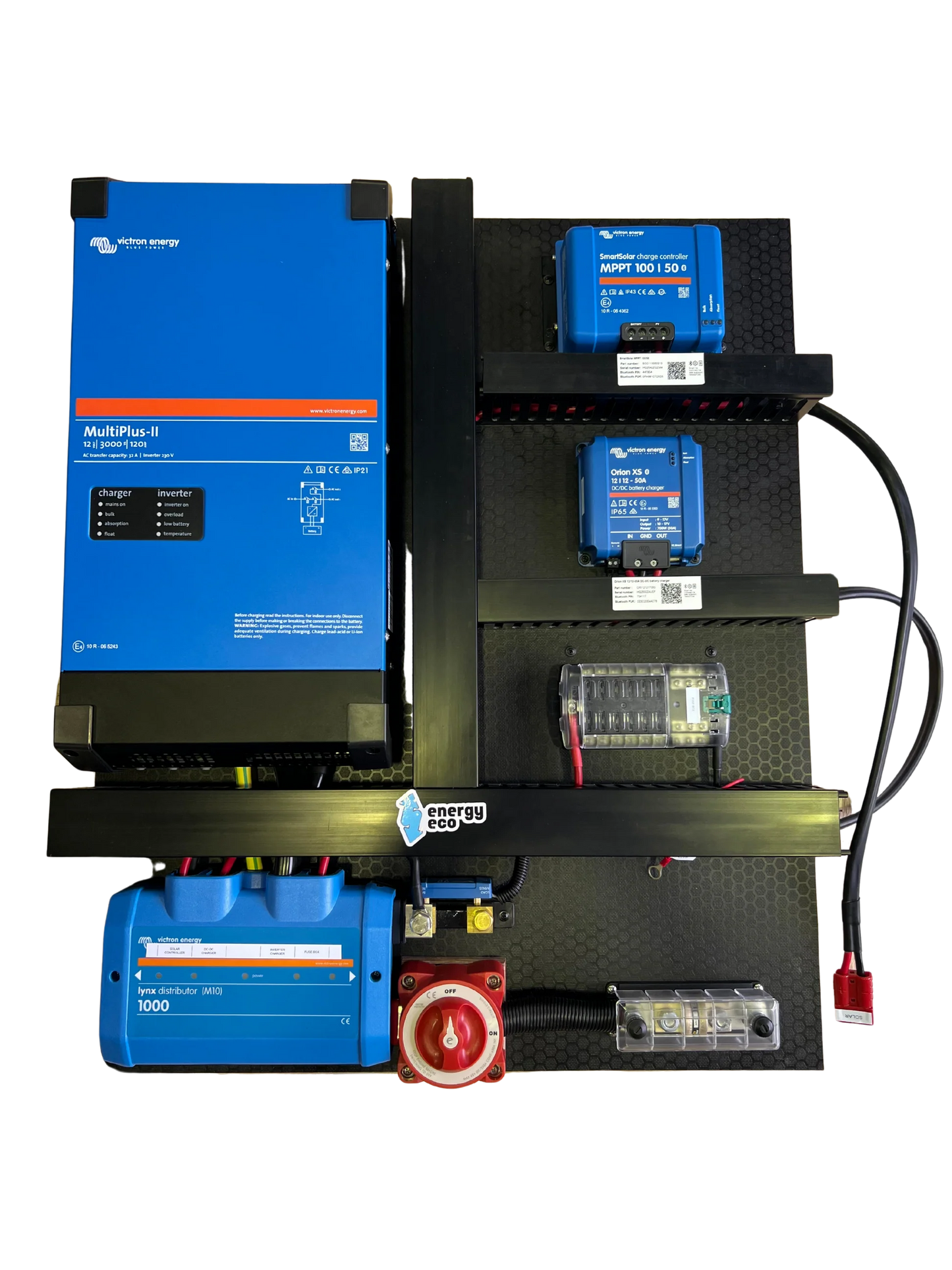

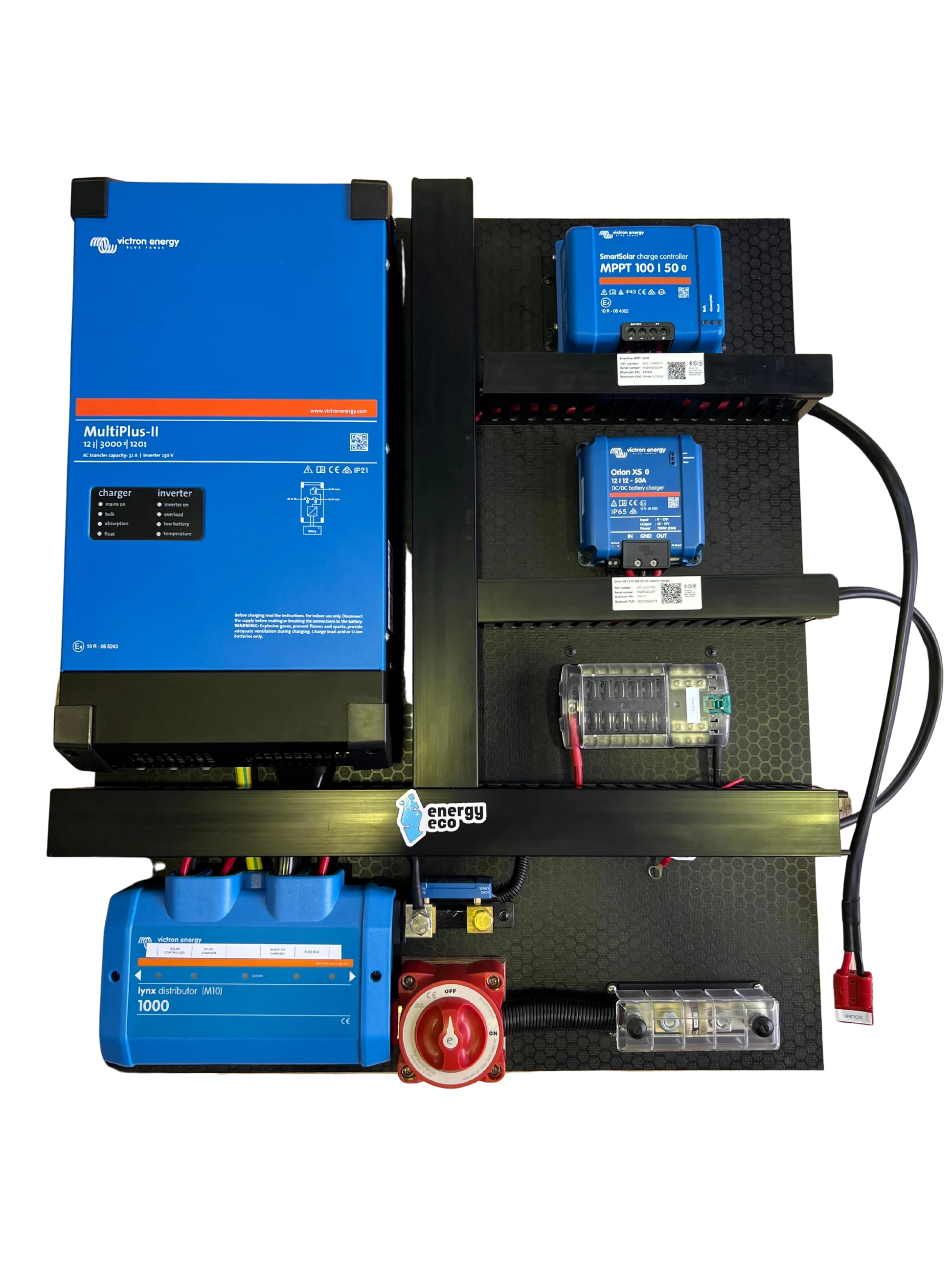

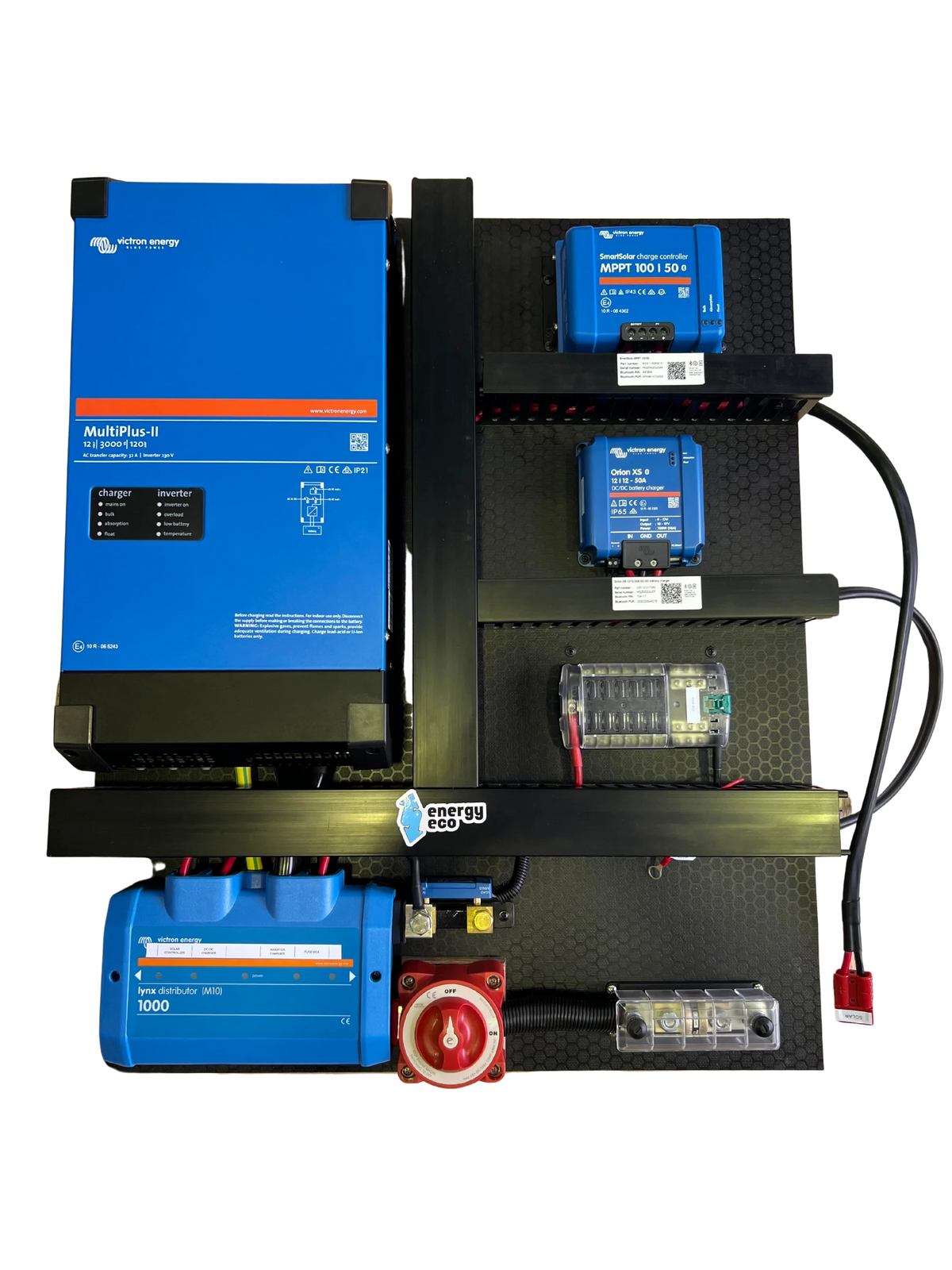

Plug & Power Pre-Wired Board

• Professionally wired

• Programmed

• Labelled

• Fully tested before dispatch

---

Optional Upgrades

• Victron Cerbo GX MK2

• GX Touch 50

• GX Touch 70

---

Key Features

• Professionally pre-wired and programmed

• Significantly reduces installation time

• Clean, organised wiring with clear labelling

• Premium Victron Energy components throughout

• Built-in battery and circuit protection

• Expandable for additional batteries and solar

• Compatible with Lithium, AGM and Gel batteries - programmed to your batteries

• Bluetooth monitoring via VictronConnect

• Remote monitoring available with Cerbo GX

• Wiring diagram supplied

• Fully tested prior to dispatch

• Designed and assembled in Australia

---

Installation

Installation has been designed to be as simple as possible.

• Connect the battery negative to the Victron SmartShunt.

• Connect the battery positive to the Class-T fuse holder.

• Connect your solar array to the SmartSolar MPPT via the supplied Anderson plug.

• Connect your engine alternator feed via the Anderson plug, ensuring the cable is protected by a suitably rated fuse installed as close as practical to the engine start battery or alternator supply.

• Connect your 12V DC loads to the 12-circuit fuse block.

Once these connections have been completed, the system is ready for AC connection.

---

Important Installation Information

The DC side of this Plug & Power board is professionally assembled, wired, fused, labelled, programmed and fully tested prior to dispatch.

All 240V AC input and AC output wiring must be completed by a suitably licensed electrician in accordance with all applicable Australian Standards and local electrical regulations.

This includes all shore power, mains supply, generator connections, grounding and 240V load circuits.

---

Suitable Applications

• Boats and yachts

• Caravans

• Motorhomes

• 4WD touring vehicles

• Canopy builds

• Tiny homes

• Off-grid cabins

• Remote power systems

---

Why Choose Plug & Power?

A Victron system is only as good as the way it is designed, protected and installed.

Every Plug & Power board is built using genuine Victron Energy and premium marine-grade components. Each system is professionally assembled, programmed, labelled and tested to ensure reliability, safety and ease of installation.

By completing the complex wiring, protection and programming before the system leaves our workshop, we save installers many hours of labour while delivering a professional-quality result that's ready to mount and connect.

Whether you're upgrading an existing electrical system or starting a new build, Plug & Power provides a reliable, expandable solution backed by industry-leading Victron technology.

---

Delivery

Delivery is available Australia-wide to business addresses or freight depots. Residential delivery may also be available; however, additional freight charges may apply depending on location and board size.
